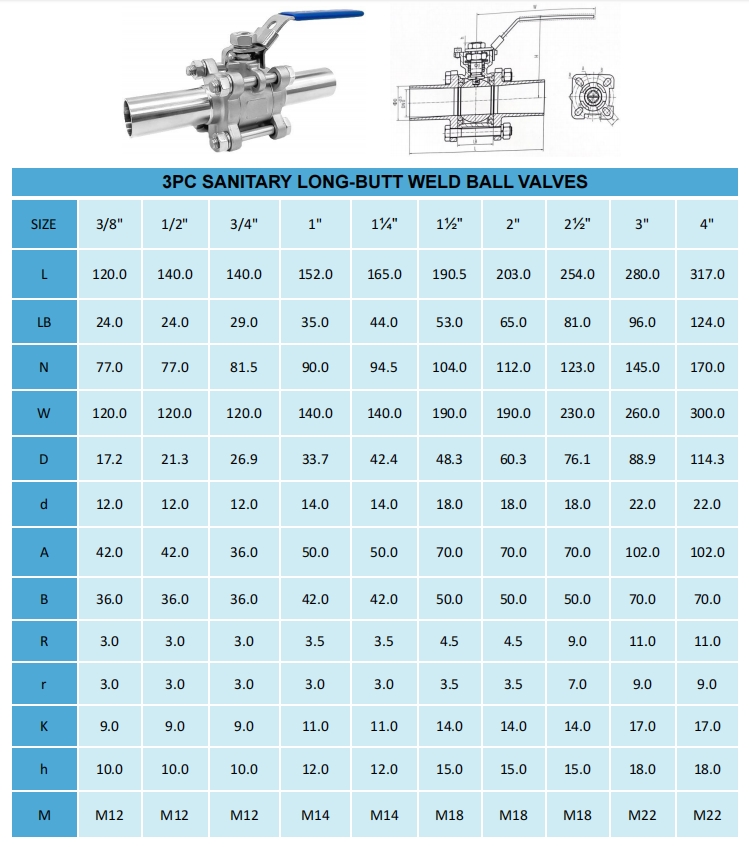

3PC Sanitary Long-Butt Weld Ball Valve

End Connections:Tube End (US/3A)
Prossure Rating:1000PSI/1000WOG
Options:Locking Device
Pattem:Full port
Availability:
Quantity:

Description:

Three-piece stainless steel butt-weld ball valve for process flow control.Connect to existing sanitary process lines with permanent butt-weld connections.


Product Specifications:


Process:Investment Casting
Material:Stainless Steel 304, 316, 1.4308, 1.4408, CF8, CF8M
Connection:Welded
Size:1/2" to 4" (DN15 to DN100)
Pressure:1000PSI/1000WOG
Working Temperature:-4°F – 300°F
Medium:Water, Oil, Gas etc
Inspection Testing:API598, EN12266(100% individually tested )


Application:

Food process

Milk processBeer brewage
Bio-pharmacyChemical industryPetrochemical industry
Beverage industryProcess plantsOther pipe systems
