Description:
The 2 piece stainless steel ball valve is probably the most widely used ball valve.
Standard two-piece valve bodies are a solution annealed for the highest quality and added strength. All body castings are marked with a foundry head number for full traceability.
Product Specifications:
Material | Stainless steel ANSI 304, 316, 304L,316L,1.4308, 1.4408, CF8, CF8M |
Size | 1/8” to 4” (DN6-DN100) |
Thread type | NPT, BSP, BSPT, etc. |
Thread Standards | ASME B16.3, ISO 7, ISO228, EN 10226 ,DIN2999/259,JIS B 0203 etc. |
Pressure | 1000PSI/PN63 |
Technology | Investment precision casting, CNC machine |
Pattern | Full port design, Reduced port, and Locking device available |
Application | Suitable for Water, Oil, Gas etc |
Note | OEM and Customized service can be provided |
Function:
These valves offer quarter-turn operation and low operating torque. The valve features live-loaded, self-adjusting stem seals that automatically adjust packing to compensate for changes in wear and temperature. Other features include replaceable seats and seals, anti-static devices, blowout-proof stems, and safety latch handles.
Three factors make them popular:
First, a full unrestricted flow that allows no product restrictions through the valve.
Second, Being two-piece threaded ball valves they are quick to install and easy to use
Third, it is the price. they are the best price ball valves with a full port or full bore.
Application:
Water | Petroleum | Gas |
Food | Chemical | Light industry |
Pharmaceutical | High-voltage equipment | Other pipe systems |

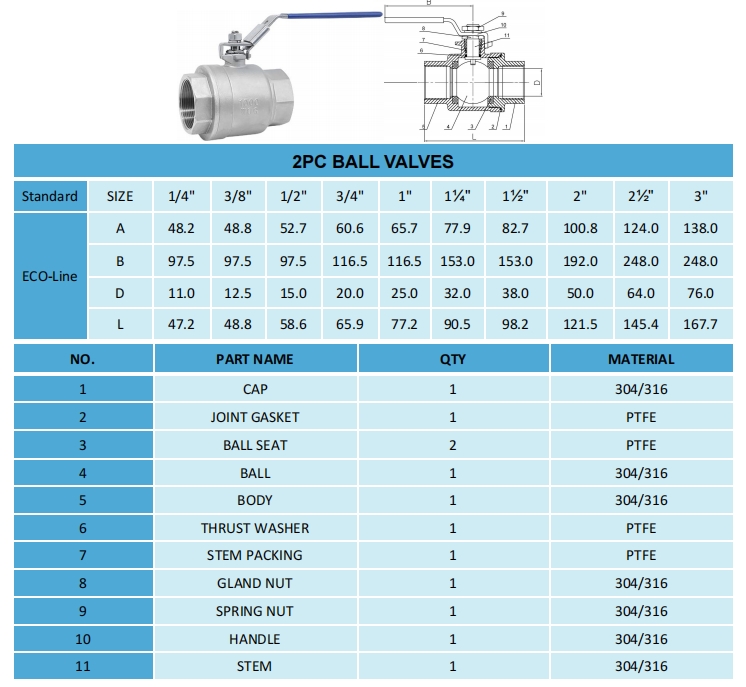

Material list:
Description:
The 2 piece stainless steel ball valve is probably the most widely used ball valve.
Standard two-piece valve bodies are a solution annealed for the highest quality and added strength. All body castings are marked with a foundry head number for full traceability.
Product Specifications:
Material | Stainless steel ANSI 304, 316, 304L,316L,1.4308, 1.4408, CF8, CF8M |
Size | 1/8” to 4” (DN6-DN100) |
Thread type | NPT, BSP, BSPT, etc. |
Thread Standards | ASME B16.3, ISO 7, ISO228, EN 10226 ,DIN2999/259,JIS B 0203 etc. |
Pressure | 1000PSI/PN63 |
Technology | Investment precision casting, CNC machine |
Pattern | Full port design, Reduced port, and Locking device available |
Application | Suitable for Water, Oil, Gas etc |
Note | OEM and Customized service can be provided |
Function:
These valves offer quarter-turn operation and low operating torque. The valve features live-loaded, self-adjusting stem seals that automatically adjust packing to compensate for changes in wear and temperature. Other features include replaceable seats and seals, anti-static devices, blowout-proof stems, and safety latch handles.
Three factors make them popular:
First, a full unrestricted flow that allows no product restrictions through the valve.
Second, Being two-piece threaded ball valves they are quick to install and easy to use
Third, it is the price. they are the best price ball valves with a full port or full bore.
Application:
Water | Petroleum | Gas |
Food | Chemical | Light industry |
Pharmaceutical | High-voltage equipment | Other pipe systems |
Material list:
Ball valves with hoses are suitable for a variety of applications across different industries due to their versatility, reliability, and ease of use. Here are some common uses:Plumbing Systems:Residential Plumbing: They are commonly used in residential plumbing for controlling water flow to differen
When purchasing a stainless steel ball valve, there are several precautions you should consider to ensure you get the right product for your needs:Quality and Material: Ensure the valve is made from high-quality stainless steel, such as 316 stainless steel, which offers excellent corrosion resistanc
Installing stainless steel ball valves requires attention to detail to ensure proper functionality and longevity. Here are some precautions to consider:Handle with Care: Stainless steel is durable, but it can still scratch or dent if mishandled. Be gentle when transporting and installing the valves
The terms "1000 PSI" and "1000 WOG" both refer to pressure ratings for valves, specifically ball valves. However, they represent different aspects of the valve's performance and application:1000 PSI: PSI stands for "pounds per square inch" and denotes the pressure rating of the valve in pounds per s
