Description：
The 1PC Ball valve as the name suggests is made out of one body piece, unlike the 2 and 3 pieces. A one-piece ball valve has a body and end connections formed from a single piece of material.
Product Specifications：
Material | Stainless steel ANSI 304, 316, 304L,316L,1.4308, 1.4408, CF8, CF8M |
Size | 1/8” to 4" (DN6-DN100) |
Thread type | NPT, BSP, BSPT, etc. |
Thread Standards | ASME B16.3, ISO 7, ISO228, EN 10226 ,DIN2999/259,JIS B 0203 etc. |
Pressure | 1000PSI/PN63 |
Technology | Investment precision casting, CNC machine |
Pattern | Full port design, Reduced port, and Locking device available |
Application | Suitable for Water, Oil, Gas etc |
| Note | OEM and Customized service can be provided |
Advantages：
Low cost: The simplicity of the 1PC body design tends to make their cost lower than the other versions.
No leakage: This construction presents a comparatively reduced number of opportunities for leakage.
Tight seals: Ensure and a long-lasting seal after many years of corrosion resistance
Application：
Water | Petroleum | Gas |
| Food | Chemical | Light industry |
| Pharmaceutical | High-voltage equipment | Other pipe systems |

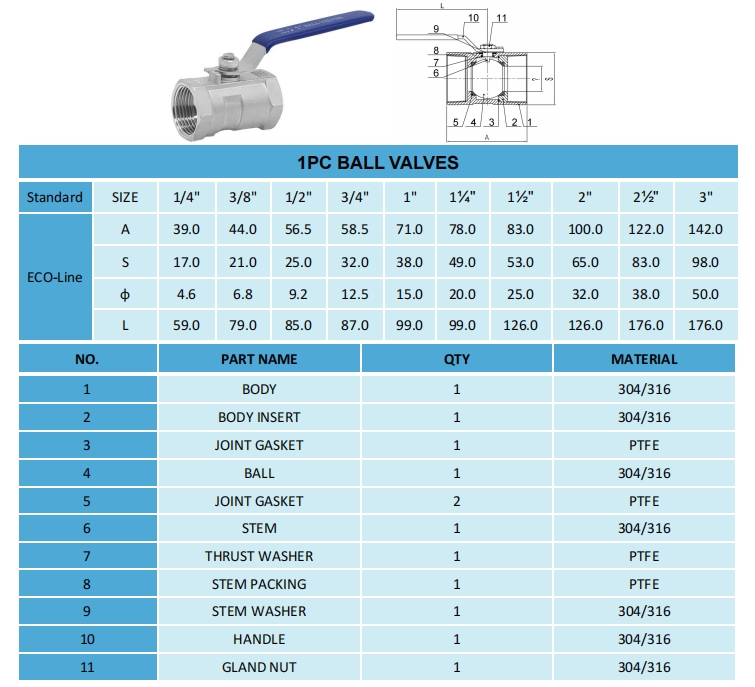

Material list
