Description：
A 3 PC Ball Valve is a quarter-turn valve that uses a hollow, perforated, and pivoting ball to control flow through it. It is open when the ball’s hole is in line with the flow. It closes when it is pivoted 90 degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve’s status.
Product Specifications：
Material | Stainless steel ANSI 304, 316, 304L,316L,1.4308, 1.4408, CF8, CF8M |
Size | 1/8” to 4” (DN6-DN100) |
Thread type | NPT, BSP, BSPT, etc. |
Thread Standards | ASME B16.3, ISO 7, ISO228, EN 10226 ,DIN2999/259,JIS B 0203 etc. |
Pressure | 1000PSI/PN63 |
Technology | Investment precision casting, CNC machine |
Pattern | Full port design, Reduced port, and Locking device available |
Certificate | CE, ISO9001, NSF, cUPC, etc |
Application | Suitable for Water, Oil, Gas etc |
Package | Packed in pcs/bag & bag/boxes inside, pallet or Wooden case outside Customized labels can be provided. Or as buyers’ requirements |
Delivery Details | According to the quantities and specifications of each order |
Note | OEM and Customized service can be provided |
Advantages：
A three-piece ball valve is preferred wherever regular cleaning is required. The valve body is composed of 3 separate pieces held together by bolts, which can be easily removed for cleaning and servicing and this can be done without removing the threaded ends from the pipe.
Application：
Water | Petroleum | Gas |
| Food | Chemical | Light industry |
| Pharmaceutical | High-voltage equipment | Other pipe systems |

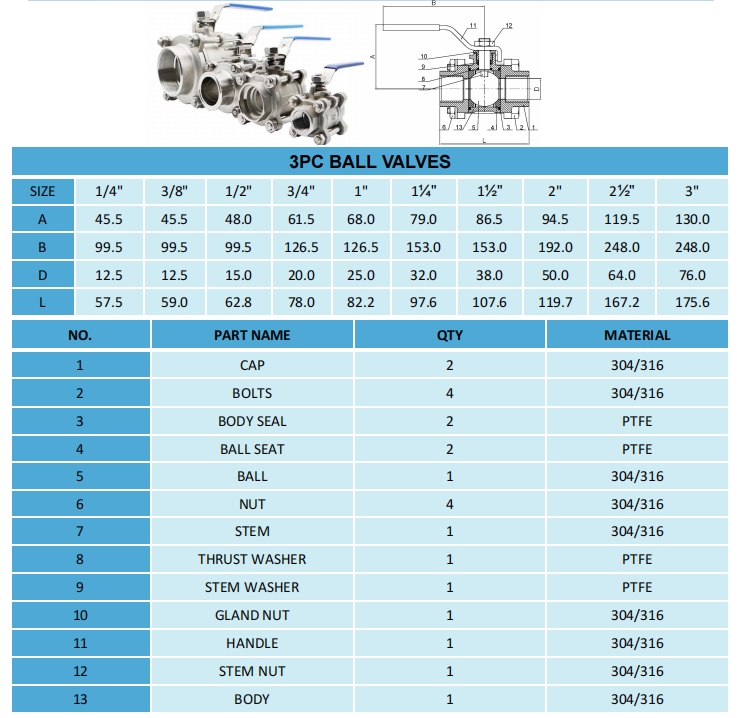

Material list
