2 Piece Flanged Ball Valve CF8 & CF8M

Size: 1/2" to 6" (DN15 to DN150)
Pressure: Class 150 lb
Pattern: Full Port
Availability:
Quantity:


Description:

Flanged Ball Valves have a different connection type than the other ball valves we carry. Meant to be mated with another flanged connection, the valves allow for easier cleaning and replacement.

Product Specifications:


Process: Investment Casting
Material: Stainless Steel 304, 316, 1.4308, 1.4408, CF8, CF8M
Connection: Flange
Thread Standards: ASME B1.20.1 BS21, DIN2999/259, ISO7-1, ISO228-1, JIS B 0203
Size: 1/2" to 6" (DN15 to DN150)
Pressure: Class 150 lb
Working Temperature: -20-180 ℃
Medium: Water, Oil, Gas etc
Inspection Testing: API598, EN12266(100% individually tested )


Application:

Water

Petroleum Gas
Food Chemical Light industry
Pharmaceutical High-voltage equipment Other pipe systems

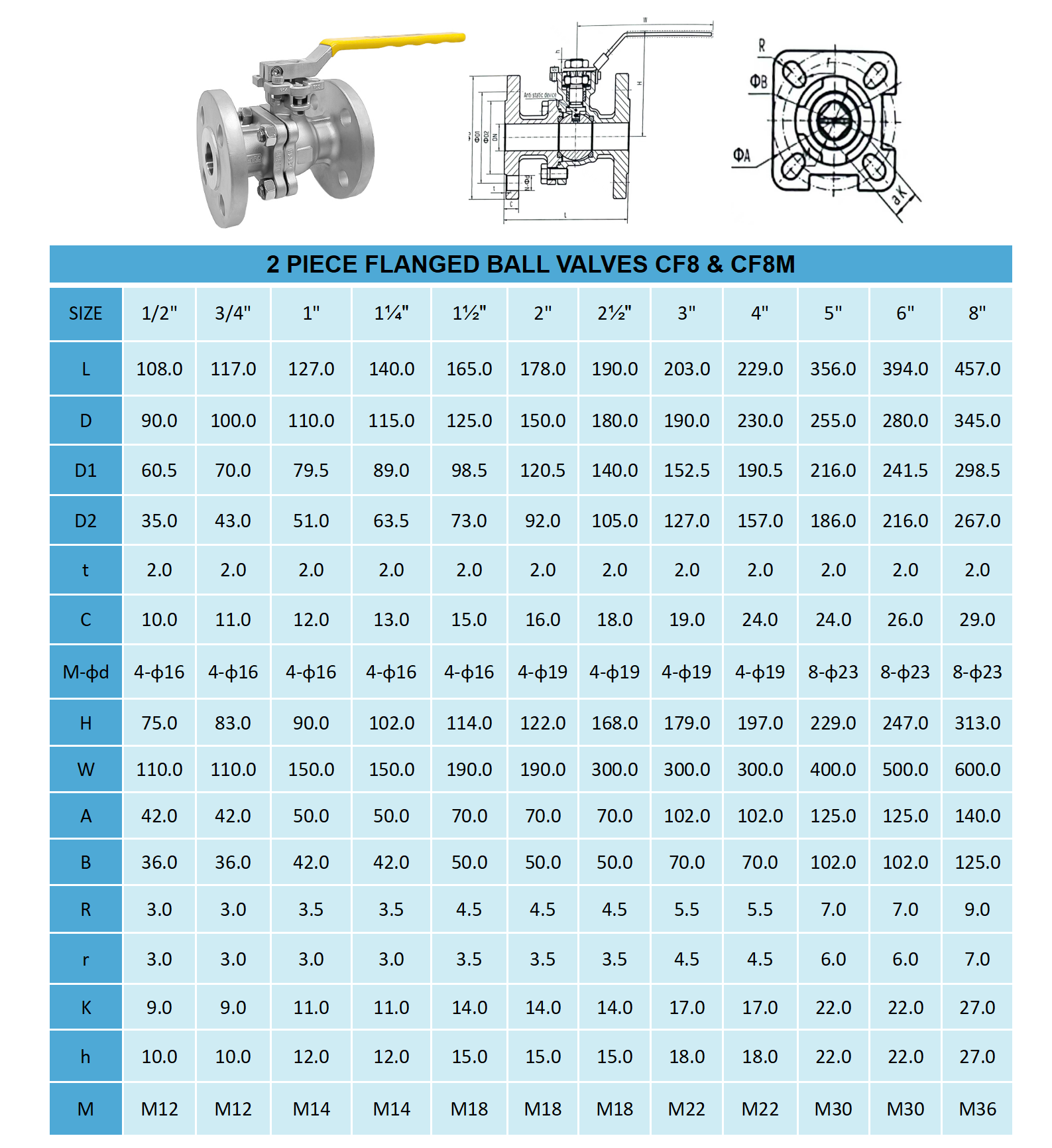

Material list

flange ball valves
