| Quantity: | |
|---|---|
KX offers varying sizes of Stainless Steel Mini Ball Valves (or miniature ball valves) . These mini ball valves are made from high-quality stainless steel (SS304/316) and has a blow-out proof stem to reduce leakage and valve damage. This standard port inline valve has female/male threads for connecting two female/male threaded pipes going in the same direction.
Product Specifications：
| Material | Stainless Steel 304, 316, 1.4308, 1.4408, CF8, CF8M |
| End Connection | Hose Barb |
| Thread Type | NPT, BSP, BSPT, etc |
| Thread Standards | ASME B1.20.1, BS21, DIN2999/259, ISO7-1, ISO228-1, JIS B 0203 |
| Size | 1/8"-1"(DN6 to DN25) |
| Pressure | 1000PSI/PN63 |
| Medium | Water, Oil, Gas,etc |
| Inspection Testing | API598,EN12266 |
Advantages：
Compact and Easy to use
Ideal for Low-Flow applications where a high quality valves is required
SUS304 body and ball for extra strength and corrosion resistance
Inline valve for connecting two pipes going in the same direction with Double-seal system
Heavy duty stainless handles to increase service life, fast 1/4 turn open or closed operation
Standard port flow for smaller valve size, each valve individually tested for maximum safety about Water, Oil, and Gas(no freezing)

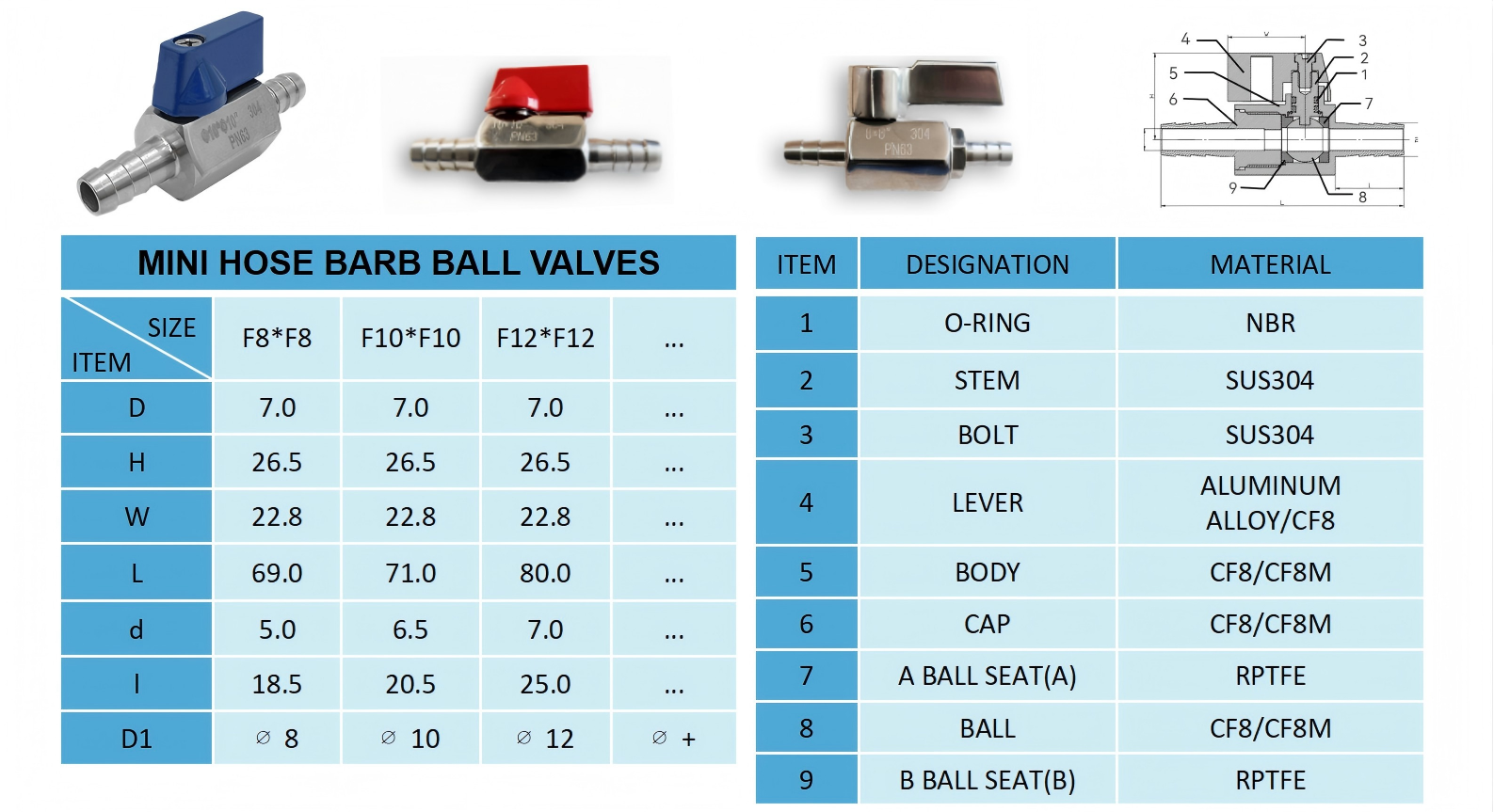

Material List：
| Item | Designation | Material |
1 | O-ring | NBR |
| 2 | Stem | SUS304 |
| 3 | Bolt | SUS304 |
| 4 | Lever | Aluminum Alloy/CF8 |
| 5 | Body | CF8/CF8M |
| 6 | Cap | CF8/CF8M |
| 7 | Ball Seat(a) | RPTFE |
| 8 | Ball | CF8/CF8M |
| 9 | B Ball Seat(b) | RPTFE |
Our listings contain the most common or recommended product selections. If you do not see a Product, Option, or need parts, please contact us and we will be glad to help you.
